EX-GC2-12162-BCH

Expion360 12V 162Ah LiFePO4 Lithium Battery – High Density GC2, Bluetooth & Heated

Maximize your energy storage with the Expion360 162Ah GC2 LiFePO4 Lithium Battery. By utilizing our advanced UL1642 recognized 4.5Ah stainless steel cylindrical cells, we have packed 32% more capacity into the standard GC2 footprint, giving you extended runtime without requiring extra space.

Built to the highest safety standards, this battery is UL1973 compliant and features our patent-pending VHC™ Internal Heating for charging in sub-freezing temperatures. We further enhance system reliability with oversized brass terminals, designed to maximize electrical connectivity and reduce heat resistance for safer operation. Encased in a rugged IP65 water-resistant housing and backed by a 12-Year Warranty, it is the ultimate high-density power upgrade for RVs, off-grid builds, and marine applications.

Best For:

  • RV house battery systems
  • Overland and off-grid vehicles
  • Marine and boat power systems
  • Backup power and mobile work setups
  • Off-grid cabins and remote installations



  • Free Shipping (Contiguous US)
$1,599.00
/
Shipping calculated at checkout.

Complete Your System
  • Massive Power Density: 162Ah in a Compact GC2 Size Maximize your energy storage with the highest capacity in its class. This unit delivers an impressive 162Ah of power within a standard GC2 battery footprint. It is the ultimate drop-in upgrade for RVs and marine vessels, utilizing high-density 4.5Ah cylindrical cells to provide 32% more energy than traditional lithium equivalents without requiring extra space.
  • All-Season Reliability with VHC™ Internal Heating Designed for extreme environments, the proprietary VHC™ (Vertical Heat Conduction) system ensures consistent performance in freezing temperatures. Unlike basic external pads, this internal heating technology warms the battery core evenly, enabling safe charging during winter expeditions, off-grid living, and cold-weather overland travel.
  • SmartTalk™ Bluetooth & CAN Bus Communication Take full control of your power system with integrated SmartTalk™ Bluetooth technology. Monitor battery health, voltage, and discharge rates wirelessly from your smartphone. For complex installations, the built-in CAN Bus port allows for seamless communication with advanced inverters and power management systems, ensuring optimal efficiency and integration.
  • Reinforced Cell Structure & IP65 Moisture Protection Engineered for durability on the road and water. The battery features UL1642 recognized stainless steel encased 26650 cells for superior structural integrity. Housed in an IP65-rated enclosure, it resists dust and moisture intrusion, making it a rugged choice for the high-vibration environments of overland rigs and marine engine bays.
  • 12-Year Warranty & US-Based Engineering Power your adventures with peace of mind. Expion360 backs this battery with an industry-leading 12-Year Warranty. Designed and engineered in Central Oregon to exceed strict safety standards, this battery is built to provide over a decade of reliable service for your most critical power needs.
Technical Specifications
Nominal Voltage 12.8V
Capacity 162Ah
Weight 39.45 lbs (17.89 kg)
Dimensions 10.2" L x 7.1" W x 10.9" H
(260mm x 181mm x 276mm)
Charge Voltage 14.4V - 14.6V
Max Discharge 100A Continuous / 300A Surge
Communication Bluetooth / CAN Bus

Product Spec Sheet and User Manual

User Manual

View User Manual

Product Spec Sheet

View Spec Sheet

Advanced LiFePO4 Lithium Chemistry for Unmatched Longevity


Experience the pinnacle of energy storage with our high-grade LiFePO4 (Lithium Iron Phosphate) chemistry. Unlike traditional lead-acid batteries that fail after a few hundred cycles, the Expion360 e360 series is engineered for long cycle life, providing over 3,000 to 5,000 cycles at deep depths of discharge. Utilizing robust stainless steel encased 26650 cylindrical cells, this battery offers superior thermal stability and structural integrity, ensuring your power investment lasts for a decade or more of adventure.

Learn More

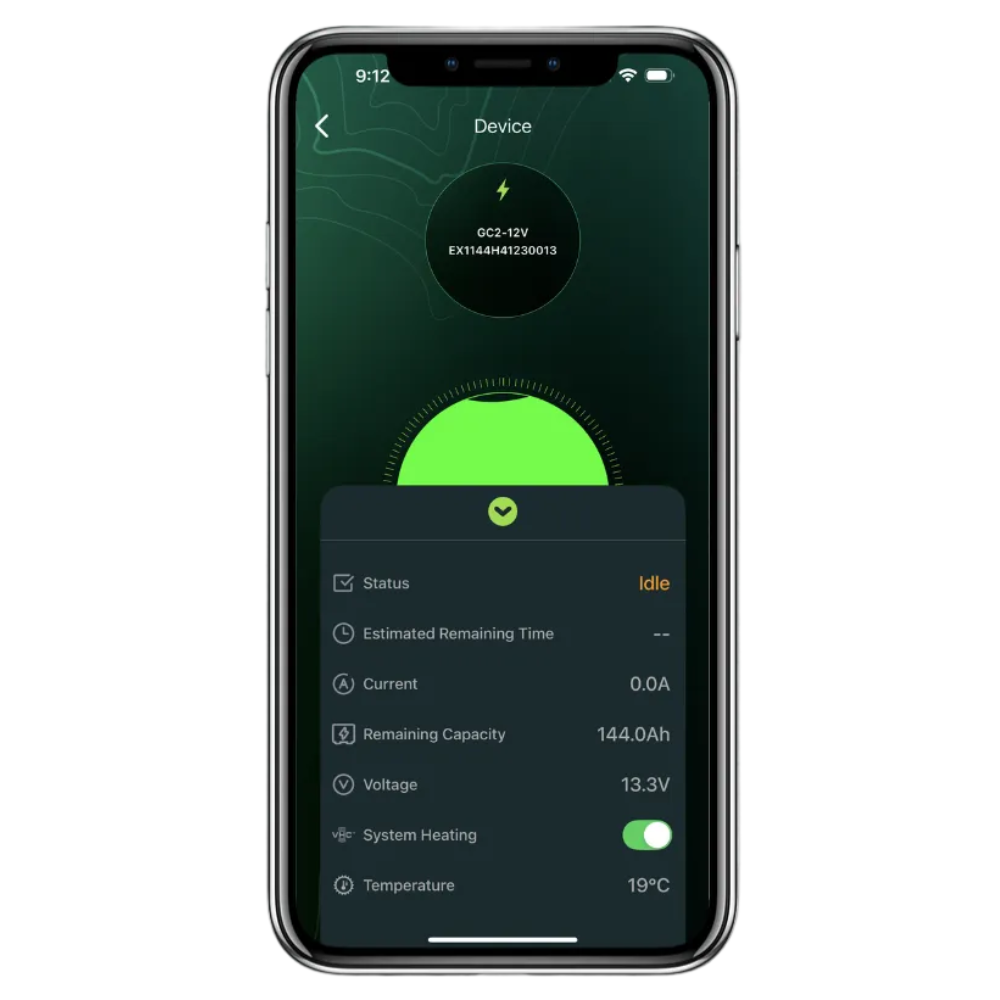

Real-Time Monitoring with SmartTalk™ Bluetooth

Eliminate "range anxiety" with integrated SmartTalk™ Bluetooth monitoring. By syncing your battery with our intuitive mobile app, you gain a high-tech window into your power system’s health. Track real-time metrics including State of Charge (SOC), voltage, current, and temperature directly from your smartphone. Whether you are managing a single unit or a massive bank, our smart BMS (Battery Management System) ensures you have the data you need to stay off-grid longer with total confidence.

SmartTalk™ APP

VHC™ Internal Heating for 4-Season Performance

Don't let freezing temperatures cut your trip short. Most lithium batteries cannot be safely charged in the cold, but our VHC™ (Vertical Heat Conduction) technology changes the game. This proprietary internal heating system is specifically designed for cold-weather RV and overland use, automatically warming the cells to safe charging temperatures. Whether you’re camping in the high Sierras or traveling through a winter storm, your Expion360 battery ensures your solar or alternator charge is always accepted.

Learn More about VHC™

OEM-Ready Design for Scalable Power Systems

Whether you are a DIY enthusiast or a professional upfitter, our OEM-ready design offers the ultimate flexibility for scalable power systems. Featuring standard BCI group sizing for a direct drop-in fit and integrated CAN Bus communication, these batteries are built to grow with your needs. Seamlessly network multiple units in series or parallel to power heavy-duty inverters and sophisticated off-grid electronics, making it the preferred choice for high-end van builds and marine power grids.

Scalable Solutions

GC2 - 12V 162Ah LiFePO4 Lithium Battery – Features

High-Density 162Ah Capacity

Experience the pinnacle of energy density. By using advanced 4.5Ah UL1642 recognized stainless steel cells, we fit 162 amp-hours of power into a standard GC2 golf cart case. This means you get far more runtime than standard 100Ah lithium batteries without needing to modify your battery box.

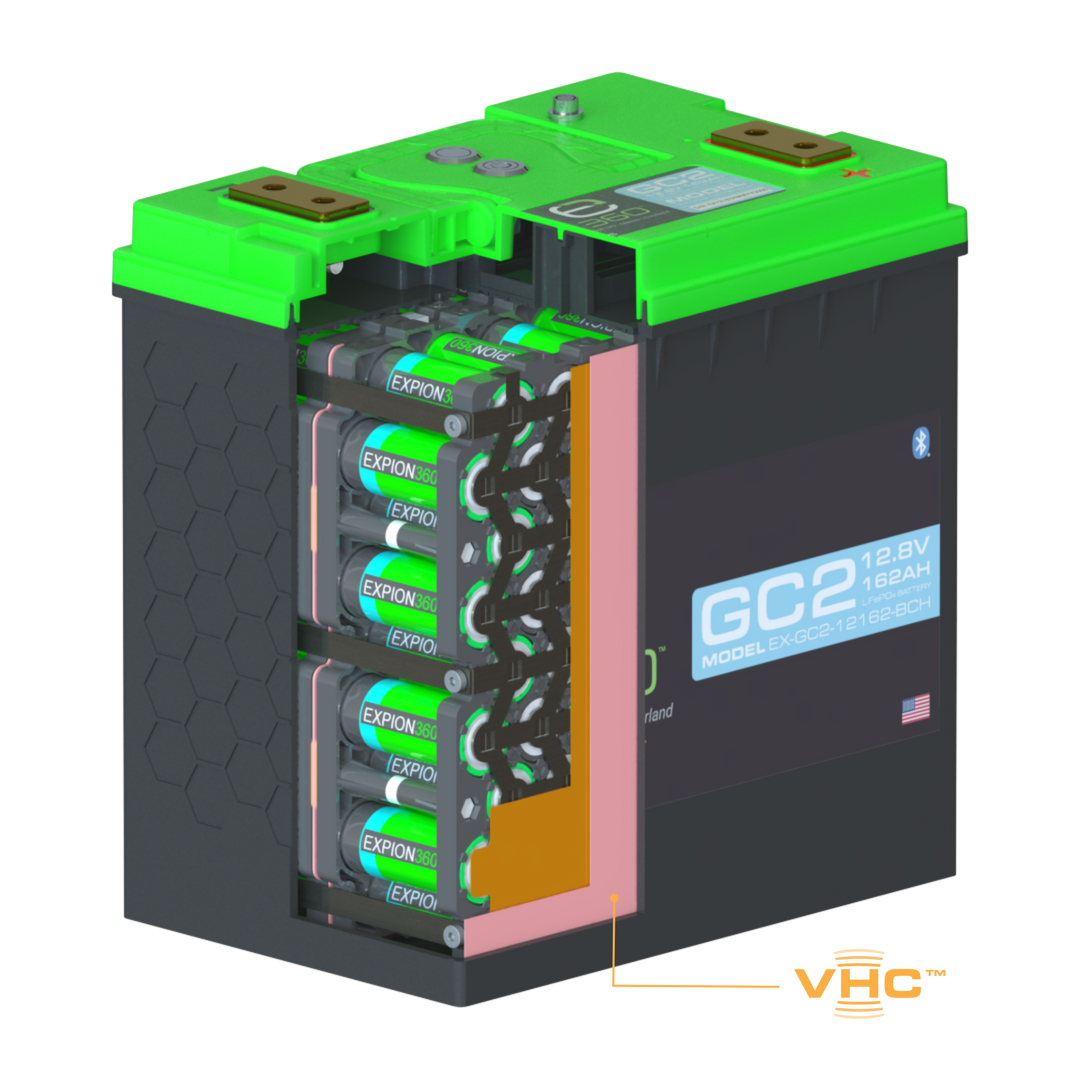

VHC™ Vertical Heat Conduction

Unlock four-season freedom with our proprietary internal heating system. VHC™ technology evenly distributes heat throughout the battery structure, allowing you to safely charge your lithium bank even when outside temperatures drop as low as

Advanced Battery Management System (BMS)

The intelligent BMS acts as the brain of the battery, actively monitoring cell health 24/7. It provides fail-safe protection against overcharging, deep discharging, short circuits, and excessive currents, ensuring your battery operates safely for its entire 12-year warranty lifespan.

Controller Area Network (CAN Bus) Communication

Designed for advanced system integration, the built-in CAN Bus port allows the battery to communicate intelligently with compatible inverters, chargers, and system monitors. This ensures precise charging coordination and seamless data sharing for complex RV and marine builds.

Bluetooth® Enabled

Stay connected to your power system wirelessly. Integrated Bluetooth® technology syncs seamlessly with the Expion360 SmartTalk™ app, allowing you to monitor real-time voltage, current, temperature, and remaining capacity directly from your smartphone without needing a separate monitor.

Oversized Brass Terminals

Engineered for maximum conductivity and mechanical strength, our oversized brass terminals provide a robust, low-resistance connection. This design minimizes heat buildup during high-current draws and ensures reliable power delivery for demanding electrical systems.

Moisture Protection

Built to withstand the elements, this battery features a rugged, water-resistant enclosure with an IP65 rating. This superior protection against water spray, dust, and humidity makes it the ideal choice for RV compartments and rugged overland environments.

GC2 162Ah LiFePO4 Lithium Battery Technical Specifications

Battery Chemistry LiFePO4 (Lithium Iron Phosphate)
Nominal Capacity 162 Ah
Nominal Voltage 12.8 V
Group Size GC2
Dimensions 10.2" L x 7.1" W x 10.9" H
(260mm x 181mm x 276mm)
Weight 39.45 lbs (17.89 kg)
Internal Heating VHC™ (Vertical Heat Conduction)
Communication Bluetooth® (SmartTalk™ App) & CAN Bus
Moisture Rating IP65 (Water & Dust Resistant)

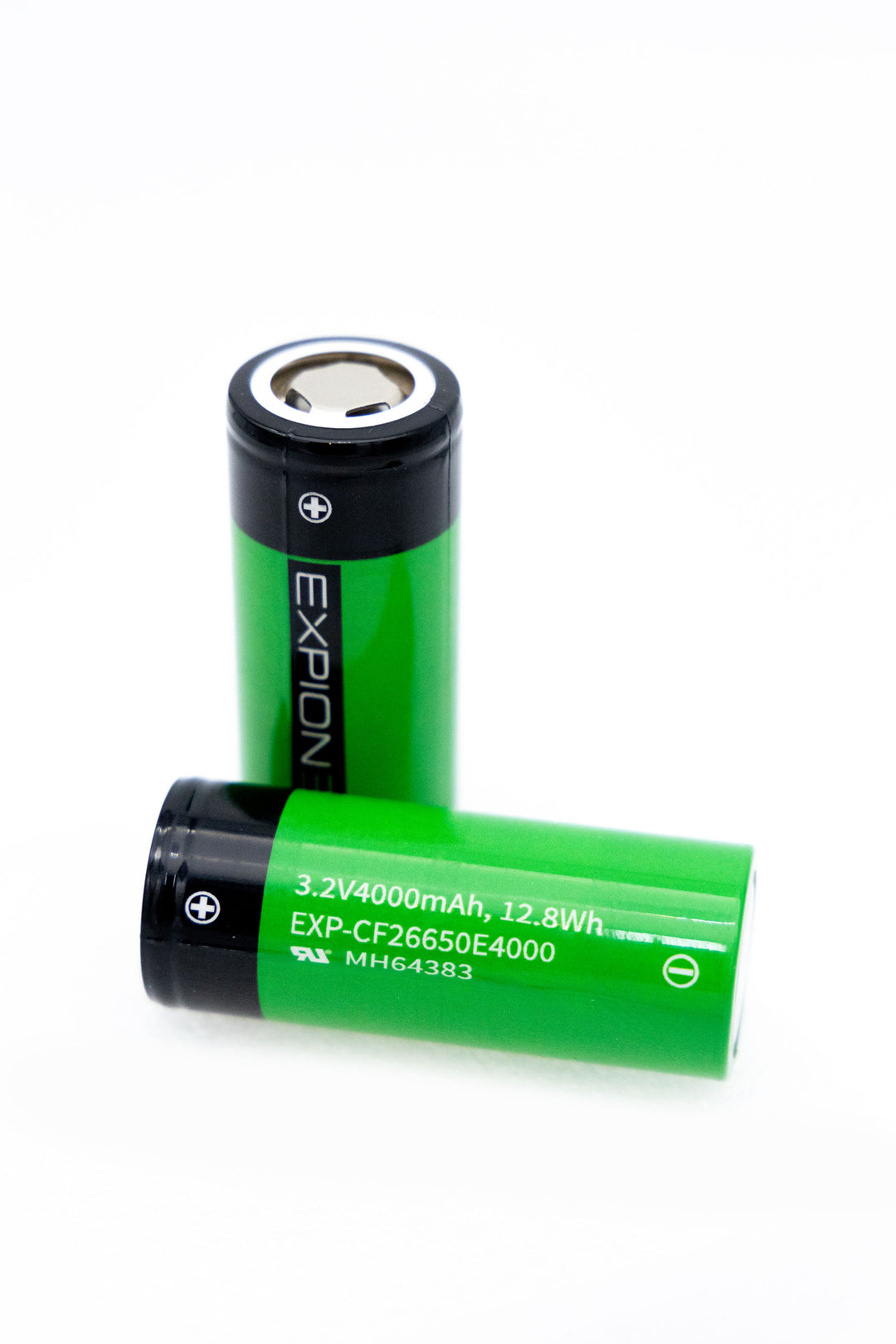

Cell Type UL1642 Recognized 26650 Cylindrical (4.5Ah Stainless Steel)
Safety Compliance UL1973 Compliant, UL 1642 Recocgnized Cells
Warranty 12 Years

FAQs

General Product Information

This is a 12.8V nominal LiFePO4 (Lithium Iron Phosphate) battery with a rated capacity of 162 Amp-hours (Ah) and total energy of 2073 Watt-hours (Wh).

Dimensions: 10.2" L x 7.1" W x 10.9" H (standard GC2 footprint).

Weight: Approximately 39.5 lbs (17.9 kg).

No. This battery is designed for 12V systems only. You cannot connect them in series. However, you can connect up to four (4) batteries in parallel to increase your total capacity (e.g., two batteries = 324Ah).

Expion360 offers an industry-leading 12-year manufacturer warranty on this battery.

Charging & Electrical Specs

For optimal performance, use a LiFePO4-compatible charger with the following settings:

  • Bulk/Absorption Voltage: 14.6V
  • Float Voltage: 13.8V
  • Recommended Charge Current: 36A
  • Max Charge Current: 72A

The battery is rated for a continuous discharge of 80A.

  • Max Discharge: 150A
  • Pulse Discharge (3 seconds): 180A
  • Pulse Discharge (1 second): 225A

Yes, it features an advanced BMS that protects against high/low voltage, short circuits, overcurrent, and extreme temperatures. It also balances the internal cells for longevity.

Features & Technology

The Vertical Heat Conduction (VHC™) system uses a heating film in direct contact with each cell. It allows you to charge the battery even in sub-freezing temperatures.

  • Smart Operation: The heater intelligently prioritizes external power (like from a solar or shore charger) to warm the battery, minimizing the drain on the battery's own stored energy.

Yes, it is Bluetooth-enabled. You can monitor the battery's status (State of Charge, voltage, current, temperature, and health) using the Expion360 SmartTalk™ app, available for iOS and Android.

SmartTalk™ allows you to wirelessly link multiple Expion360 batteries into a single "bank" view on your phone, so you can see the total system status rather than checking each battery individually.

GC2 is a standard battery group size often used for 6V golf cart batteries. This Expion360 battery fits that same physical footprint but provides 12V power with significantly higher capacity (162Ah) than a standard lead-acid GC2 battery.

Installation & Safety

While LiFePO4 batteries are generally flexible with mounting, the internal structure of this specific GC2 case is optimized for upright installation. Always refer to the user manual for specific mounting allowances regarding the VHC heating system.

The battery has an IP65 rating, meaning it is protected against dust ingress and low-pressure water jets from any direction. It is suitable for marine and RV environments but should not be submerged.

It uses M8 x 1.25 threaded terminals. Ensure you use the correct torque settings (typically found in the manual) to prevent loose connections.
